Four Sides Multi-Spindle Moulder

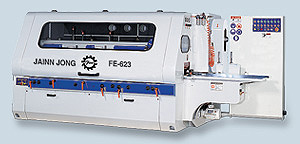

FE-623
OPTIONAL EQUIPMENT
*Pneumatic auto lumber feeding device.
*Tilting universal cutting spindle device.
*Reinforced outer upper cutting soindle.
*Frequency inverter for feed 6-60 m/min.

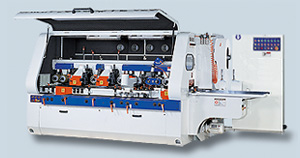

FE-423



OUTSTANDING FEATURES:

* The table surface is made up of high ductile cast iron. The cutterhead guard plate is made of HSS steel and vacuum heat treated, hard chrome plated and precision ground for smooth wear resistance.

* Elevation, cutter adjustment, lubrication and maintenance are all conveniently processed at the front of the machine, saving time and labor.

* The feeding sizing adjustment of cutters is done through a numerical display control, allowing for convenient and rapid setting.

* The machine is equipped with overload protection device for cutters. If an overload occurs, the feeding motor and all cutters will stop within 3 seconds, providing safety to the operator and extending the service life of the machine.

* The Feeding roller utilizes pneumatic feeding and is coupled with gearbox for synchronous, powerful feeding effect.

* The feeding can be operated in jog mode, for accurate and precise test runs.

* The table surface adopts newly designed pneumatic lubrication for feeding, for easy feeding of all types of lumber.

* The rear lower spindle can be installed with a gang rip saw, flat knife or forming cutter, according to processing needs.


DIGITAL CONTROLLER

LIFTABLE AUXILIARY FEED ROLLER
*The right spindle is equipped with an auxiliary feed roller which can be lifted through air cylinder, providing convenient tool changing or setting.
 PNEUMATIC AUTO LUMBER FEEDING DEVICE (Optional)
*Provides automated, fast end safety cutting operations.
 REINFORCED OUTER SPINDLE SUPPORT (Optional)
*The spindle is available to equip with an outside support for upgrading stability while cutting.
MAXIMUM TABLE WEAR RESISTANCE
*The cutterhead guard plate is manufactured from high speed steel, vacuum heat treated. The entire table surface is hard chrome plated for maximum wear resistance.

*The table surface has a pneumatically activated forced lubrication device. This permits feeding with ease even for wet material.
 POSITIVE FEED EFFECT
*The feeding mechanism consists of multiple air loaded feed rollers combined with lower rollers transmitted by universal joint shafts. The upper and lower rollers are driven synchronously to assure superior feeding effect.
RETRACTABLE PRESSURE PLATES
*The front and rear pressure plates on the upper cutterhead and the front pressure plate are retractable to ensure stability and safety when cutting material of excessive height.
UNIVERSAL SPINDLE (Optional)
*The last spindle can be equipped with a universal spindle allowing complicated profile machining. The universal spindle may be tilted. It also provides functions such as top, bottom and vertical spindles.
GROOVED TABLE
*Especially ideal for short stock machining. The grooved table is optional.		 ROUTER SPINDLE (Optional)
*The machine can be equipped with top, bottom, right and left router spindle. They permit direct slot milling in a single pass after moulding.


ILLUSTRATION FIGURES FOR COMPREHENSIVE CUTTING SPINDLE APRAY


The lower spindle installed with
router bit.

The lower spindle installed with
gang rip raw.



Universal cutter spindle.


Specifications:
MODEL FE-423 FE-623 FE-630G
No. of cutting spindles 4 6 6
Max. moulding height 160mm 160mm 160mm
Max. moulding width 230mm 230mm 230mm
Min. length of cut 230mm 230mm 230mm
Rev. speed of cutting spindle 6200 RPM   6200 RPM 6200 RPM
Cutting spindle dia. 40mm 40mm 50mm
Cutting head dia. Ø100~180mm Ø100~180mm Ø100~180mm
Max. cutting dia. of upper spindle Ø180mm Ø180mm Ø180mm
Max. cutting head dia. of rear lower spindle - Ø255mm Ø255mm
Feeding speed 6-46 m/min (inverter)
Feeding roller dia. Ø140mm Ø140mm Ø140mm
Feed roller width 100mm 100mm 200mm
Adjusting range for straight table & guide plate 10mm 10mm 10mm
Straight table length 1500mm 2000mm 2000mm
Elevation adjustment range of vertical spindle 30mm 30mm 30mm
Cross adjusting range of horizontal spindle 30mm 30mm 30mm
Elevation motor 1 HP 1 HP 1 HP
Feeding motor 7 1/2 HP 7 1/2 HP 10 HP
Power Required (Standard) HP Front Lower Spindle 7 1/2 HP 7 1/2 HP 10 HP
Right Vertical Spindle 7 1/2 HP 7 1/2 HP 10 HP
Left Vertical Spindle 7 1/2 HP 7 1/2 HP 10 HP
Front Upper Spindle 10 HP 10 HP 15 HP
Rear Upper Spindle - 7 1/2 HP 10 HP
Rear Lower Spindle - 7 1/2 HP 10 HP
Machine size 3240x1830x1750mm 4420x1830x1750mm 4290x1910x1750mm
Measurements 3400x1870x2000mm 4600x1870x2000mm 4390x1950x2000mm
N.W./ G.W. 2900/3400kgs 3500/4300kgs 4500/5300kgs
* Note: The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. without prior notice.
